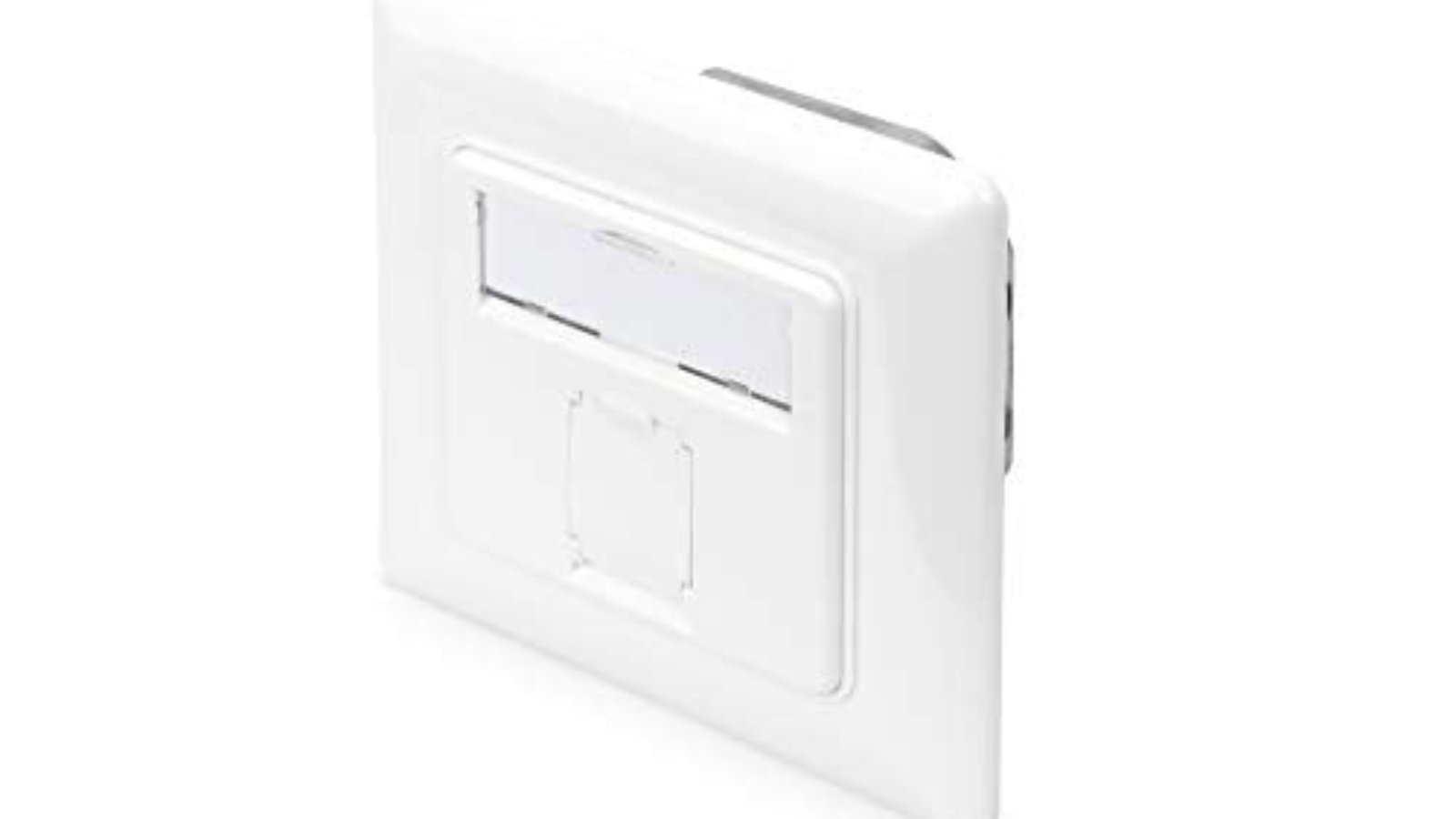

DIGITUS Flush-Mounted Network Socket Cat-6A – 1-Way RJ45 – UAE Connection Box – Shielded – Designable – Pure White RAL 9003

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1] The CAT 6A data connection sockets from Digitus® are design-compatible with all common switch programs. They are certified according to CAT 6A ANSI/TIA 568 and ISO/IEC 11801, EN 50173 and have 1 shielded RJ45 socket. Cable installation is carried out via LSA strips, colour coded according to EIA/TIA 568 A & B. The UP junction box is ideal for keeping your installation cables clean and tidy. Suitable for installation depths from 28 mm. The box is rounded off by the integrated field of view, with which you can optimally describe the junction box with a label insert.
Package Dimensions ‏ : ‎ 3.46 x 3.39 x 2.68 inches; 4.94 Ounces
Item model number ‏ : ‎ DN-9010-1
Date First Available ‏ : ‎ June 29, 2020
Manufacturer ‏ : ‎ DIGITUS
ASIN ‏ : ‎ B089B5C65J

The CAT.6A data junction box with an RJ-45 network connection is designed for flush-mounting and is design-compatible with all common switch ranges from other manufacturers.
The 28 mm deep metal die-cast network junction box has a complete shielding and complies with the following standards: ISO/IEC 11801 2nd Ed. , EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
A standard flush-mounted box can be used for installation – Cable feed is carried out vertically from above or below – The installation cable is connected via LSA cutting terminals
For individual designation of the UAE socket, it has a labelling field – If there is no patch cable in the RJ45 socket, the dust cover can be closed
Due to the Ethernet standard 10GBase-T and Class EA, the LAN socket supports 10 Gbit/s & 500 MHz – The LSA strips for installation cables are color-coded according to EIA/TIA 568 A & B
